Front-Panel Inserts

Dell™ OptiPlex™ GX50 Systems

  Removing Front-Panel Inserts

  Replacing Front-Panel Inserts

Removing Front-Panel Inserts

1. On the small form-factor and small desktop computers, perform the following steps:

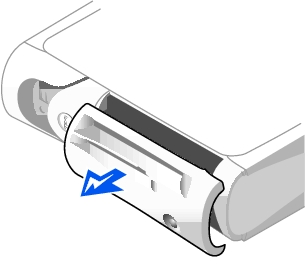

   1. Face the front of the computer and use your fingers to remove the front-panel cover.

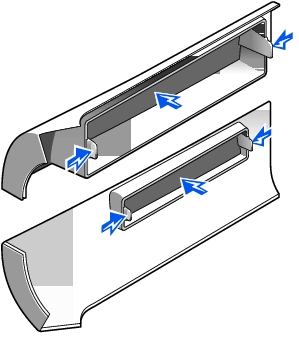

   2. Press on the insert until it pops free of the front-panel cover.


2. On the small mini-tower computer, perform the following steps:

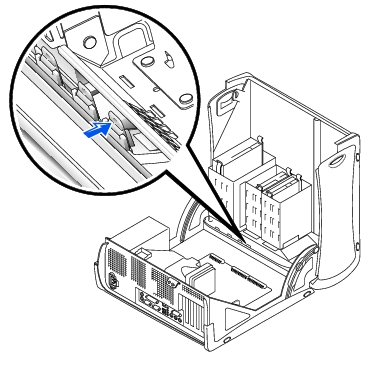

   1. Open the computer cover and release the insert tabs from inside the chassis.


   2. Press on the insert until it pops free of the front-panel cover.

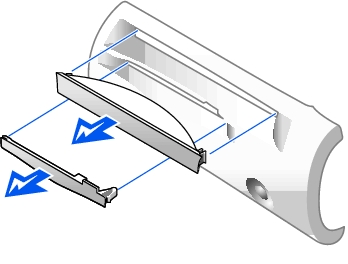

Small Form-Factor Computer

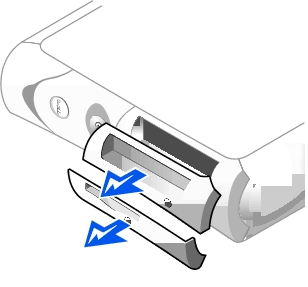

Small Desktop Computer

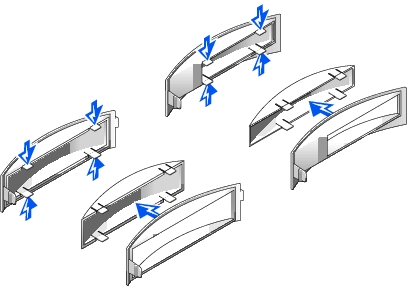

Small Mini-Tower Computer

Replacing Front-Panel Inserts

To replace a front-panel insert, follow the appropriate procedure, in reverse, in "Removing Front-Panel Inserts."
