Coin-Cell Battery

Dell™ Latitude™ D610 Service Manual

  Removing the Coin-Cell Battery

  Installing the Coin-Cell Battery

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your computer's electronic components. You can do so by touching an unpainted metal surface.

Removing the Coin-Cell Battery

1. Follow the instructions in "Preparing to Work Inside the Computer."


2. Turn over the computer, loosen the captive screw from the modem cover, and lift the cover away from the computer.

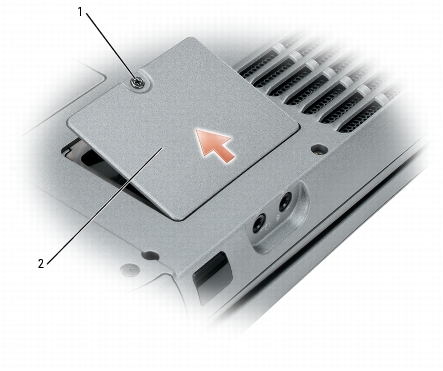

1	captive screw
2	modem cover

3. Disconnect the coin-cell battery cable connector from the battery connector on the system board, and slide the coin-cell battery out of the securing sleeve.

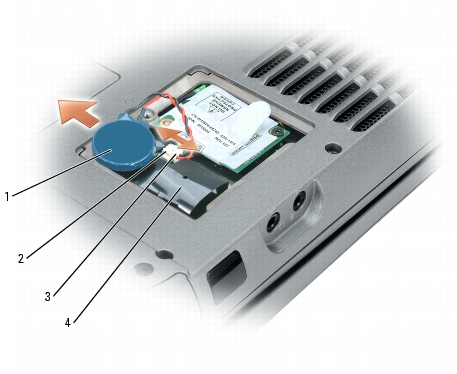

1	coin-cell battery
2	battery connector on system board
3	coin-cell battery cable connector
4	securing sleeve

Installing the Coin-Cell Battery

1. Connect the coin-cell battery cable connector to the battery connector on the system board.


2. Slide the battery into the securing sleeve.


3. Replace the modem cover.
